dbr.accordion
- Organize report elements with accordionsdbr.accordion.close
- Marks the end of an accordiondbr.accordion.class
- Define your own accordion-style with a classdbr.accordion.style
- Define your own accordion-styledbr.columnfilter
- Add a filter to a column. The filter hides non-matching rowsdbr.columnfilter.remember
- Remember the user filter choise between page refreshesdbr.column.filter
- An alias for the dbr.columnfilterdbr.columnhighlite
- Add a filter to a column. The filter highlites matching rowsdbr.column.title
- Define the title for a column in cases where the content of the column is dynamicdbr.collapse
- Collapse selected columns to make a more compact viewdbr.collapse.template
- Use template for collapsed datadbr.colsort
- Alias for dbr.sortcoldbr.compare
- Show database results side by sidedbr.compare.options
- Change compare behaviordbr.divify
- Use DIV's instead of tables in the outputdbr.header.group
- Add additional header row to group columnsdbr.keepwithnext
- Makes next element to be placed side by side with the current onedbr.lockcolumns

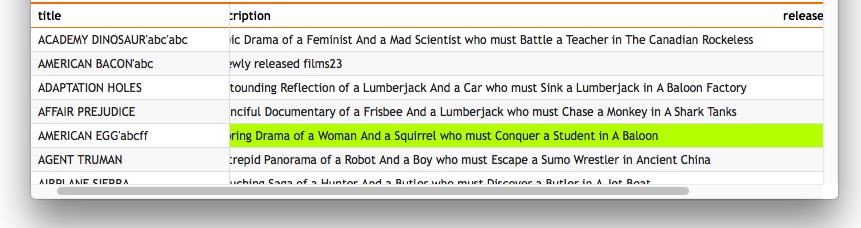

- Lock leftmost columns when resultset does not fit into the screen. The 'fixedrow' options allows variable height columnsdbr.no_data
- Define a placeholder for queries that do not return any datadbr.nosort
- Disable sorting on specified columnsdbr.parameters.show
- Make parameter input visible in the reportdbr.pageview
- Show a row from the database in a page viewdbr.refresh
- Make the report automatically refresh itself at a given interval or just once if no parameters are givendbr.resultset.options
- Allows combining multiple result sets by skipping header/footerdbr.rownum
- myDBR replaces the command with the row number in the result setdbr.rownum.set
- Initialize the rownum-valuedbr.search
- Disable/enable search & export for a given result setdbr.scrollable
- Make result set scrollable with a fixed number of rowsdbr.sort
- Set initial sorting orderdbr.sortcol
- Sort a column-based value from another columndbr.sortmethod
- Override the default sort methoddbr.sortorder
- Override the default initial sort order. The default is 'intelligent'dbr.sort.remember
- Remember the user's sort orderdbr.header.tooltip
- Define tooltip for the headerdbr.toggle
- Set columns/rows togglabledbr.toggle.options
- Set toggle optionsdbr.tooltip
- Define the cell's tooltipdbr.pager
- Attach the pager component to a table reportdbr.tab
- Organize report elements with tabsdbr.tab.class
- Define your own tab style with classdbr.tab.close
- Mark the tab element as closeddbr.tab.next
- Switch to the next unpopulated tabdbr.tab.selected
- Set's the default tab by name or by tab order number (0=first, 1=second)dbr.tab.style
- Define your own tab styledbr.localization
- Override the default localization
select 'dbr.accordion', 'accordion name' [, 'jQuery accordion options']
select 'dbr.accordion.close'
select 'dbr.accordion.class', 'css_classname'
select 'dbr.accordion.style', 'css style definition'
select 'dbr.columnfilter', ColumnReference[[, 'select' [, 'desc', [list of values]] | 'multiselect' | 'text'], 'default="defaults"]
select 'dbr.columnfilter.remember', 1
select 'dbr.column.filter', ColumnReference[[, 'select' [, 'desc', [list of values]] | 'multiselect' | 'text'], 'default="defaults"]
select 'dbr.columnhighlite', ColumnReference[, 'select' ['desc'] | 'multiselect' | 'text']
select 'dbr.column.title', ColumnReference, title
select 'dbr.collapse', ColumnReference [,ColumnReference... ]
select 'dbr.collapse.template', template_name
select 'dbr.colsort', ColumnReferenceTo, ColumnReferenceFrom

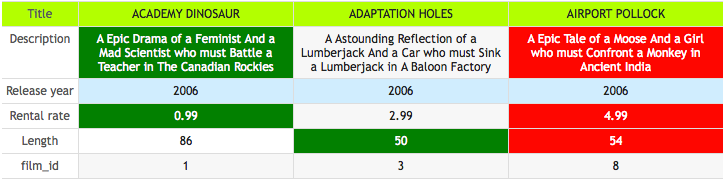

select 'dbr.compare'
select 'dbr.compare.options' [no_compare ColumnRef, ColumnRef... | compare_column ColumnRef_Target, ColumnRef_Compare ]
select 'dbr.divify' [, 'css_classname']
select 'dbr.header.group', 'name', ColumnReferenceFrom, ColumnReferenceTo
select 'dbr.keepwithnext' [, pixels]
select 'dbr.lockcolumns', ColumnReferenceToLockTo [, 'fixedrow' ]
select 'dbr.no_data', 'message', 'css_classname'
select 'dbr.nosort', ColumnReference [,ColumnReference... ]
select 'dbr.parameters.show'
select 'dbr.pageview'
select 'dbr.refresh' [[,seconds], ['counter', ['no_toggle']]]
select 'dbr.resultset.options', 'skip_header_footer' | 'skip_header' | 'skip_footer' | 'json'
select 'dbr.rownum', data from table
select 'dbr.rownum.set', value
select 'dbr.search', 1
select 'dbr.scrollable' [, number_of_rows_to_show ]
select 'dbr.sort', ColumnReference, 'asc' | 'desc'
select 'dbr.sortcol', ColumnReferenceTo, ColumnReferenceFrom
select 'dbr.sortmethod', ColumnReference, 'text' | 'number' | 'currency' | 'ipaddress' | 'url' | 'percent' | 'date' | 'time' | 'rownum'
select 'dbr.sortorder', ColumnReference, 'intelligent' | 'desc' | 'asc'
select 'dbr.sort.remember'
select 'dbr.header.tooltip', ColumnReferenceTo, 'Tooltip text'

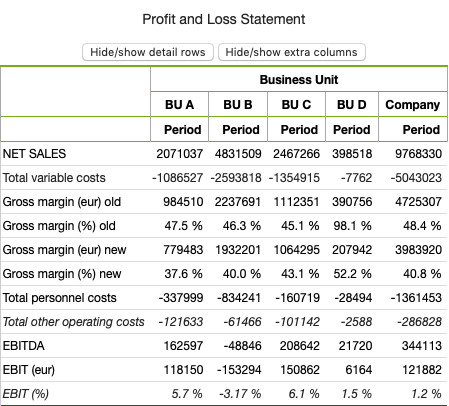

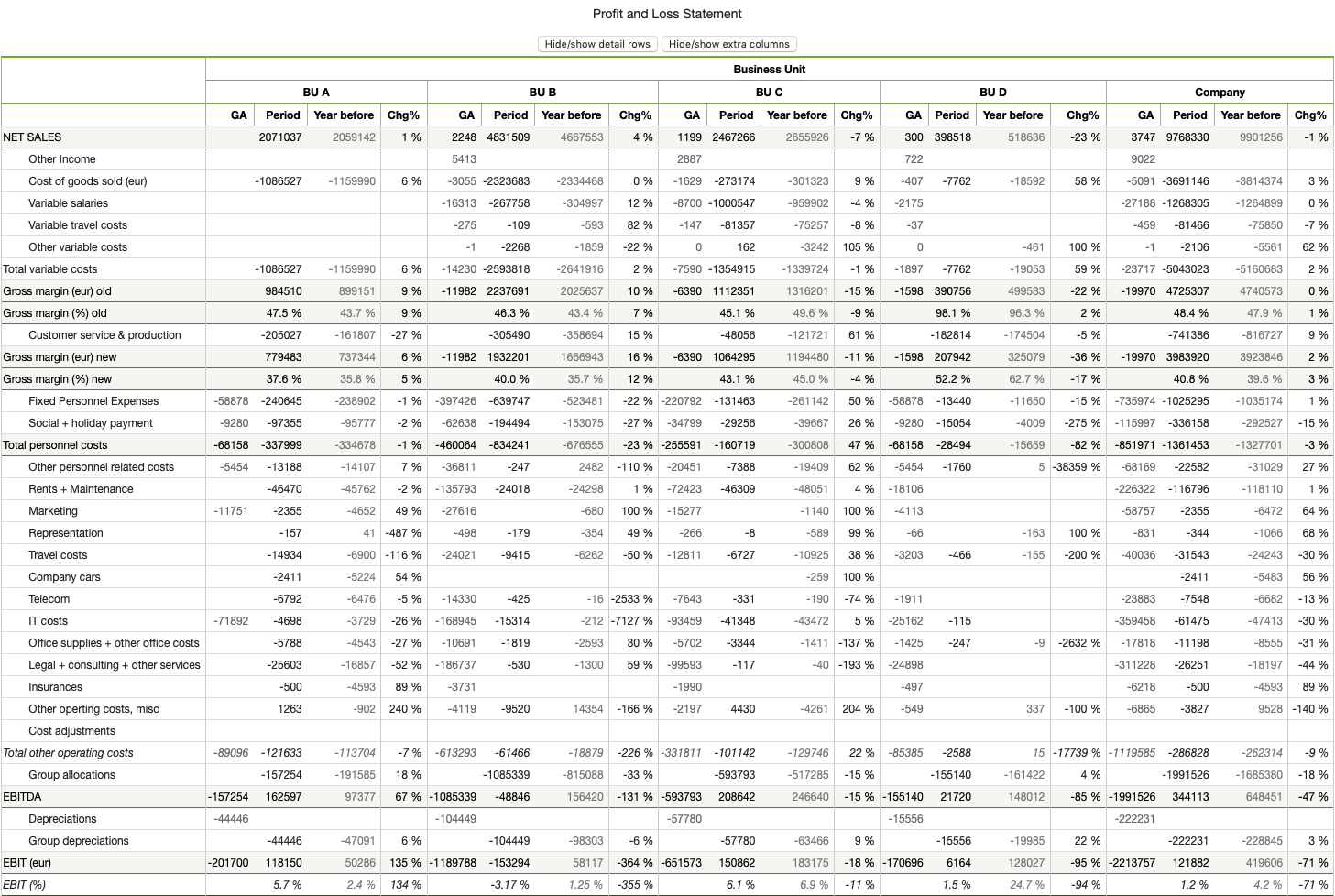

select 'dbr.toggle', [columnslist, JSON_toggle]
select 'dbr.toggle.options', 'speed' | 'columns' | 'scroll' | 'select_all', value
select 'dbr.tooltip', ColumnReferenceTo, ColumnReferenceFrom
select 'dbr.pager' [, nbr of rows per page, [pager text] ]
select 'dbr.tab', 'tab name' [, ajax_call_for_content | myDBR report ]
select 'dbr.tab.class', 'css_classname'
select 'dbr.tab.close'
select 'dbr.tab.next'
select 'dbr.tab.selected', tab
select 'dbr.tab.style', 'css style definition'
select 'dbr.localization', 'thousand_separator' | 'decimal_separator' | 'date_format' | 'time_format', localization_format
Where:
name
Checkbox title
class
(optional) Checkbox CSS-class (in case you wish to toggle the item via JavaScript)
resultclass
(optional) CSS-class that will be added to the table when a checkbox is clicked
callback
(optional) A JavaScript function to be called when a checkbox is clicked. The parameter passed to the functon is the checkbox
cols
(optional) An array of columns to be toggled when a checkbox is clicked
rows
(optional) An array of rowclasses to be toggled when a checkbox is clicked
speed
A string or a number determining how long the animation will run
columns
How many columns will the toggle dialog show
scroll
Determines if the toggle dialog shows a scrollbar (value=1)
select_all
Determines if the toggle dialog shows a Select All/Deselect All checkbox in the header
dbr.pageview
The dbr.pageview
command is used to show one row in a record-style format.
Select a single row as a result set:
select title, description, release_year, special_features, last_update from mydb.film f where film_id=1;
Result is a single row.

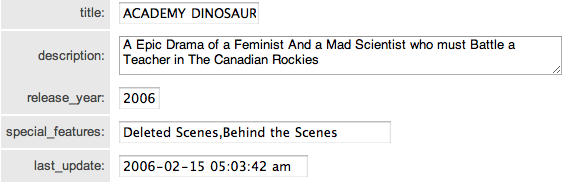

when we apply the dbr.pageview
command we get the result out in the following, more readable layout:
select 'dbr.pageview'; select title, description, release_year, special_features, last_update from mydb.film f where film_id=1;

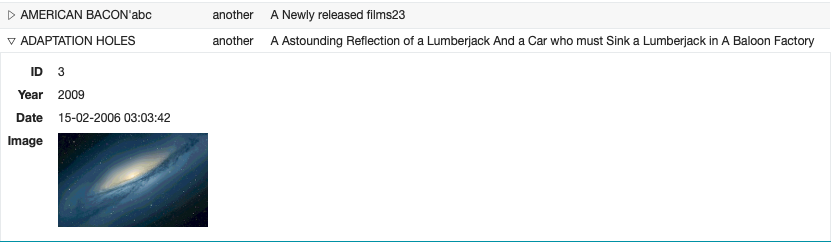

dbr.collapse
Sometimes, the number of columns in the report can make it too wide and difficult to read. With collapse functionality, you can hide some of the columns from the initial display but still allow the user to show them by clicking the row.
The collapse functionality is much like the 'inline' linked report, except that in collapsible, no linked report is required. The 'inline' linked report provides more flexibility in the layout.
By adding the CSS class collapse_open
to a row, the row will be opened by default. You can also use a template with collapsible rows via the command dbr.collapse.template
.
select 'dbr.collapse', 'ID', 'Year', 'Date', 'Image'; select 'dbr.colstyle', 'Image', '[width:150px]image'; select Title, Description, ID, Year, Date, Image from mydb.data;
dbr.keepwithnext
By default, a myDBR report lays out the elements on separate lines. If you wish to place elements next to each other, use the dbr.keepwithnext
command. Optional parameters define the space around the elements. For more information, refer to layouts.
dbr.rownum
You can make myDBR create automatic row numbers for you with the dbr.rownum
command.
The following report will produce output for two columns, where the first column is a row number column.
select 'dbr.rownum' as 'Row number', title from film;
dbr.header.group
Group normal query columns (not crosstab) with an additional header row by using the dbr.header.group
command.
select 'dbr.header.group', 'Used', 'hours_used', 'cost_used'; select 'dbr.header.group', 'Budget', 'hours_budget', 'cost_budget'; select phase as 'Phase', hours_used as 'Hours[hours_used]', cost_used as 'Cost[cost_used]', hours_budget 'Hours[hours_budget]', cost_budget as 'Cost[cost_budget]' from mydb.data;

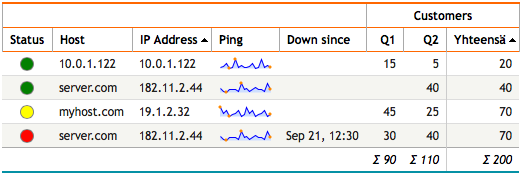

dbr.sort
, dbr.sortmethod
, dbr.colsort
By default, a myDBR report makes columns sortable. Users can sort the columns by clicking the header.
myDBR offers multilevel support and a variety of sorting methods. A sorting method understands the data and carries out intelligent sorting based on the data.
The dbr.sort
command defines a column and a sorting order. If multiple dbr.sort
commands are issued, a multilevel sort is performed.
Set the predefined sorting order (ascending based on the amount and ascending based on the IP address) and ensure that the first column, which contains both IP addresses and hostnames, is sorted alphabetically. The IP address column is sorted based on the actual IP address.
select 'dbr.sort', 'amount', 'desc'; select 'dbr.crosstab', 'Quarter'; select 'dbr.sum', 'amount'; select 'dbr.hsum', 'amount'; select 'dbr.hidecolumn', 'down'; // This is used for sorting select 'dbr.sortmethod', 'Host', 'text'; select 'dbr.sort', 'amount', 'asc'; select 'dbr.sort', 'ip', 'asc'; select 'dbr.sortcol', 'Down since', 'down'; // Sort 'Down since'-column based on datetime from column 'down' select status as 'Status', host_ip as 'Host', ip_address as 'IP Address[ip]', ping, date_format(down, '%D %b, %H:%i') as 'Down since', down, quarter as 'Quarter', amount as '[amount]' from mydb.mytable;
dbr.nosort
If you decide that a column or the result set as a whole should not be sortable,
you can disable sorting on selected or all columns. With no columns specified or the column number set to zero,
dbr.nosort
disables sorting altogether. If you have a very large result set,
disabling sorting can speed up processing, as sorting is done via JavaScript in the browser, and a large dataset
with a slow machine/browser may slow down report initialization.

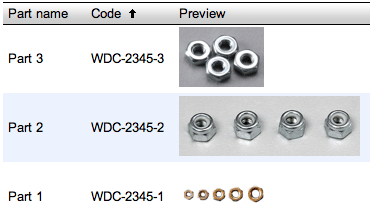

Disable the sorting on image column:
select 'dbr.nosort', 'Preview'; select 'Part 1' as 'Part name', 'WDC-2345-1' as 'Code', 'dbr.html:<img src="http://www.mysite.com/parts/WDC-2345-1.jpg">' as 'Preview' union select 'Part 2', 'WDC-2345-2', 'dbr.html:<img src="http://www.mysite.com/parts/WDC-2345-2.jpg">' union select 'Part 3', 'WDC-2345-3', 'dbr.html:<img src="http://www.mysite.com/parts/WDC-2345-3.jpg">';
Now user can sort columns 1 and 2, but sorting on column 3 is disabled:
dbr.search
By default, myDBR's objects export and search/filter functionality are placed behind a small triangle.
You can change this behavior by using dbr.search
. If set to a value of 1, the export/filter area is shown by default.
If set to a value of 0, the filter is hidden altogether.
select 'dbr.search', 1;
Note that you can set the export and search/filter functionality to be on by default in userstyle.css by adding:
div.search { display: block; }
Note that you can set the search/export feature to be on by default by setting $mydbr_defaults['search'] = true;
in the defaults.
dbr.refresh
When used, the report will automatically refresh itself at a given interval.
The first optional parameter for the command is 'seconds', indicating the interval after which the report is refreshed. When 'seconds' is not provided,
the refresh is done immediately. An immediate refresh is used, for example, when an editable report
returns the dbr.refresh
command, after which the edited values in the report will be displayed.
The second optional parameter is the constant 'counter'. When applied, the calculated seconds will be shown at the top of the report, and the user is able to pause the counter by clicking on it.
The third optional parameter is the constant 'no_toggle'. When applied, a counter will be visible, but the user cannot stop the counter.
select 'dbr.refresh', 5; /* Refresh after 5 seconds */
select 'dbr.refresh', 50, 'counter'; /* Refresh after 50 seconds. User can stop the counter by clicking on it. */
select 'dbr.refresh', 50, 'counter', 'no_toggle'; /* Refresh after 50 seconds. User cannot stop the counter. */
dbr.column.title
If a column contains dynamic data, its title can also be dynamic.
if (in_Gross>0) then select 'dbr.column.title', 'grossnet', 'Gross'; else select 'dbr.column.title', 'grossnet', 'Net'; end if select Name, if ( in_Gross>0, gross, net ) as '[grossnet]' from mytable;
dbr.parameters.show
By default, a myDBR report allows parameters to be changed if the user clicks the "Change report parameters" button.
The dbr.parameters.show
command makes the values visible by default.
select 'dbr.parameters.show';
dbr.divify
By default, myDBR shows report results as HTML tables. With the dbr.divify
command, you can use DIVs.
This allows for more flexible formatting in CSS and post-processing in JavaScript.
An example query:
select 'dbr.divify', 'divifythis'; select 'dbr.hidecolumns', 'divrow'; select 'dbr.rowclass', 'divrow'; select name, population, code, 'divrow' from countries;
This will produce the following HTML code:
<div class="divifythis"> <div class="divrow"> <div class="name">Maldives</div> <div class="population">286 000</div> <div class="code">MDV</div> </div> <div class="divrow"> <div class="name">Brunei</div> <div class="population">328 000</div> <div class="code">BRN</div> </div> </div>

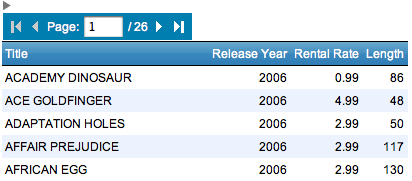

dbr.pager
myDBR offers a client-side pager for browsing larger result sets.
The pager allows you to embed larger table elements into the report and still control the size of the element. It will display a pager component on top of the result set, enabling the user to navigate the result set using the pager.
select 'dbr.colstyle', 'release', '%d'; // Formatting the year -> will not use the thousand separator select 'dbr.pager', 5; select title as 'Title', release_year as 'Release Year[release]', rental_rate as 'Rental Rate', length as 'Length' from film;
The pager component is a client-side feature, intended for use in cases where the size of the result set is manageable on the client. For very large result sets, consider limiting the number of rows or using linked reports. (Users are seldom able to handle very large sets anyway).

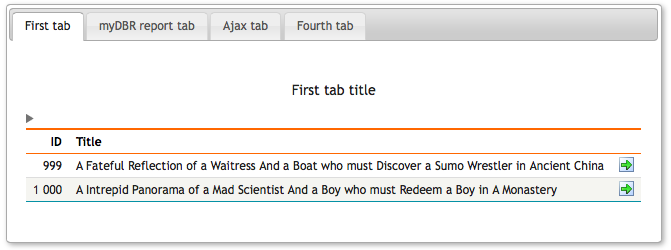

dbr.tab
, dbr.tab.next
, dbr.tab.style
, dbr.tab.class
You can create tabs in your report to break content into multiple sections that can be swapped to save space. The content of the tab can either consist of static report elements, or the content can be fetched using Ajax when the tab is clicked.
To use tabs, you first declare each tab with the dbr.tab
command. The first parameter for the dbr.tab
is the tab's name.
The second optional parameter is a URL for an Ajax call or a myDBR report name (with parameters) to be called when the tab is clicked.
If no second parameters are given, the content of the tab is expected to come later in the report.
Once the tabs are declared, the content of each non-Ajax/myDBR report tab needs to be provided.
Once the content of a tab is defined, the next tab is selected with the dbr.tab.next
command.
The dbr.tab.next
command selects the next tab that has not been assigned an Ajax URL or a myDBR report.
If you wish to define your own styles for a tab, the commands dbr.tab.style
and dbr.tab.class
can be used.
The most common use case for styles is to set the tab width to a fixed width while allowing the content width between tabs to vary.
/* Declare the tabs. The second tab is fetched via ajax when the user clicks the tab. In case of myDBR report add &embed=1 to the end of the URL */ select 'dbr.tab', 'First tab'; select 'dbr.tab', 'myDBR report tab', 'sp_DBR_linked_report', v_param_1; select 'dbr.tab', 'Ajax tab', 'report.php?r=548&m=1&h=55589f83ec7daa84432118425499bd5875f6d6fa&embedi=1'; select 'dbr.tab', 'Fourth tab'; /* Now the tabs are declared, so the content of 'First tab' is populated */ select 'dbr.title', 'First tab title'; select ID, Title, release_year as 'Year' from film; /* dbr.tab.next moves to next unpopulated tab which is the 'Fourth tab' */ select 'dbr.tab.next'; call sp_DBR_another_report( inMyParam ); select 'dbr.tab.close';

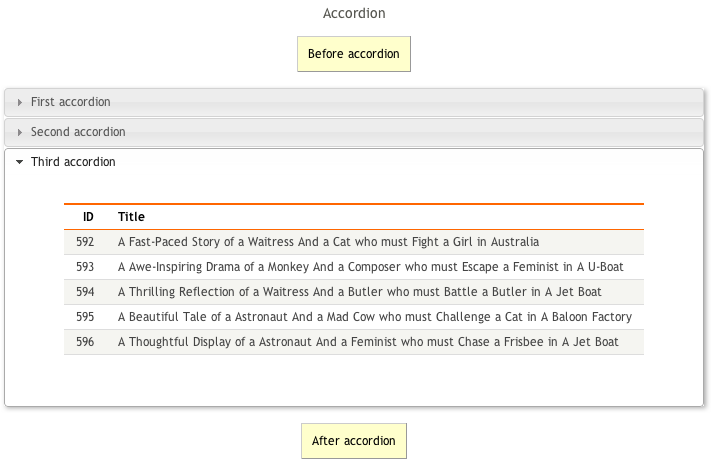

dbr.accordion
, dbr.accordion.close
, dbr.accordion.style
, dbr.accordion.class
An accordion is a UI element (similar to a horizontal tab) that is best suited for displaying a limited number of items.
To use an accordion, start a new accordion with the dbr.accordion
command.
Each subsequent dbr.accordion
command adds a new accordion element to the existing one.
The content of each accordion comes after the 'dbr.accordion' command.
Once finished with the accordion, close the element with the dbr.accordion.close
command.
You can customize the accordion behavior by passing the jQuery accordion options as the second parameter to the dbr.accordion
command.
The 'active' option defines the default open section (starting from zero).
To have all accordion sections closed by default, you can use the 'active:false' option.
To enable multiple accordion sections to be open at the same time, you can use the 'multiopen:true' option.
When defining multiple options, separate them with a comma, for example, 'active:false, multiopen:true'.
You can modify the default accordion style with 'dbr.accordion.style' and 'dbr.accordion.class'. The former takes a CSS style as a parameter and the latter a CSS class. Any definition made here is added to the accordion wrapper div.
select 'dbr.text', "Before accordion", 'comment'; select 'dbr.accordion.style', 'width:700px'; select 'dbr.accordion', 'First accordion'; select 'dbr.text', "This is part of 'First accordion'-content", 'comment'; /* Some other content for first accordion */ select 'dbr.accordion', 'Second accordion'; call sp_DBR_accordion_2_content(); select 'dbr.accordion', 'Third accordion'; select ID, Title from mydb.film; select 'dbr.accordion.close'; select 'dbr.text', "After accordion", 'comment';
dbr.no_data
You can define a placeholder for queries that return no data. The default behavior is that myDBR outputs the query header without any rows,
and in the case of a chart, it will create a placeholder chart element. With the dbr.no_data
command, you can display your own message instead.
If no CSS class is given, myDBR uses the default 'div.no_data' style. You can define your own by adding it as a second parameter.
select 'dbr.no_data', "No films were found", 'comment'; select ID, Title from mydb.film where film_creation>'2020-01-01';
By default, a myDBR report uses sticky headers, where the report table element headers stay on the screen when the user scrolls the document. You can disable this by adding the class 'fixedheader' to the result set.
dbr.lockcolumns
When you have a wide result set and you scroll to the right, you can lock the leftmost columns to be always visible.
The dbr.lockcolumns
command's first parameter defines the last column to be locked.
The optional second parameter, 'fixedrow', keeps row height constant and can be used when data in a cell spans multiple rows.
select 'dbr.lockcolumns', 'title'; select title, description, release_year from film f;
dbr.columnfilter
Column filters allow filtering rows based on the column's data. A column filter can be either a select list, a multiselect list, or a text field.
A select list can also be sorted in descending order using the optional parameter desc
.
By default select
and multiselect
show possible values from the column. You can add additional valies (if your editing reports add new ones). A default setting can set the initial value for the filter. For select
, text
the default values are single values defined by default=value
. multiselect
filter's default are defined as a JSON array default=["First","Second"]
Column filter, by default, keeps the width of the table constant to keep the UI constant. If you want the table width to be dynamic (based on content), add resultclass flexible-width-columnfilter
to the result set.
select 'dbr.columnfilter', 'Category', 'select'; select 'dbr.columnfilter', 'Title', 'text'; select g.name as 'Category', title as 'Title' from film f join film_category fg on f.film_id=fg.film_id join category g on g.category_id =fg.category_id;

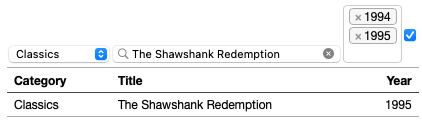

Setting initial defalt values:
select 'dbr.columnfilter', 'Category', 'select', 'default=Classics'; select 'dbr.columnfilter', 'Title', 'text', 'default="The Shawshank Redemption"'; select 'dbr.columnfilter', 'Year', 'multiselect', 'default=["1994","1995"]'; select g.name as 'Category', title as 'Title', release_year as 'Year' from film f join film_category fg on f.film_id=fg.film_id join category g on g.category_id =fg.category_id;
Additional values in case it's a editable report adding new values
select 'dbr.columnfilter', 'Category', 'select', 'Classics', 'Horror', 'Additional category'; select g.name as 'Category', title as 'Title', release_year as 'Year' from film f join film_category fg on f.film_id=fg.film_id join category g on g.category_id =fg.category_id;
dbr.toggle
With dbr.toggle
, users can toggle the visibility of selected columns/rows. When dbr.toggle
is used without parameters,
users are shown a list of columns whose visibility they can toggle. If you want the user to just toggle selected columns, list the ColumnReferences as parameters.
This gives you full control over the items to be toggled/postprocessed.
select 'dbr.toggle'; select film_id as 'ID', title as 'Title', description as 'Description' from film f;
You can pass a JSON array as a parameter to dbr.toggle
. Each element in the array represents one toggle.
The first one toggles the rows with the 'account' CSS class. The checkbox will have a CSS class 'rowbutton', and a CSS class 'toggledrows' is added/removed to/from the table when toggled.
Finally, the JavaScript function is called to allow full customization of the toggle. The other item, 'Show/Hide columns', simply toggles the selected columns.
Instead of showing the toggle menu for the user, buttons are displayed, and the checkboxes are clicked via JavaScript.
-- Hide the toggle icon, we'll use buttons instead select 'dbr.css', '.toggle_img {display:none}'; select 'dbr.purehtml', '<input type="button" value="Hide/show detail rows" onclick="$(''.rowbutton'')[0].click();">'; select 'dbr.purehtml', '<input type="button" value="Hide/show extra columns" onclick="$(''.colbutton'')[0].click();">'; select 'dbr.javascript', 'function myfunc(checkbox) { alert("Callback"); }'; select 'dbr.toggle','[ { "name":"Show/Hide rows", "class":"rowbutton", "resultclass":"toggledrows", "callback": "myfunc" "rows":["account"] }] '; select 'dbr.toggle','[ { "name":"Show/Hide columns", "class":"colbutton", "cols":["thisyear_ga", "thisyear_format", "lastyear", "chg"] }] '; select ... from pl_statement...
Initial report
Output when columns and rows are toggled, and the CSS class is applied to the result:
dbr.resultset.options
With result set options, you can combine multiple result sets into one table. A result set can be the result of a query or a template that you insert into the report element. It is also used with the 'json' option in SQL Server and Sybase to indicate that the data will be JSON.
dbr.compare
With dbr.compare
, you can display result set rows side-by-side and optionally format the minimum, maximum, and equal values from different rows.
By default, a CSS class (compare_min
, compare_max
, compare_same
) is applied to each cell.
You can choose not to compare a column by using dbr.compare.options
, 'no_compare', 'ColumnRef'. Additionally, you can choose the column
used for comparison for a selected column: select dbr.compare.options
, 'compare_column', 'ColumnRef_Target', 'ColumnRef_Compare'.
select 'dbr.css', '.compare_min {background: green; color:white;}'; select 'dbr.css', '.compare_max {background: red; color:white}'; select 'dbr.css', '.compare_same {background: #d0edfe;}'; select 'dbr.colstyle', 'Description', '[width:200px]'; select 'dbr.colstyle', 'Release year', '%d'; select 'dbr.compare'; -- Do not compare Title and film_id columns select 'dbr.compare.options', 'no_compare', 'Title', 'film_id'; -- Compare Description-column based on film_id select 'dbr.compare.options', 'compare_column', 'Description', 'film_id'; select f.title as 'Title', f.description as 'Description', f.release_year as 'Release year', f.rental_rate as 'Rental rate', f.length as 'Length', f.film_id from demo.film f where f.film_id in (1, 3, 8);
