Barcode Extension

The Barcode-extension utilizes Johan Lindell's JsBarcode JavaScript library. The supported barcode types are

  • CODE128 (auto and force mode)
  • CODE39
  • EAN-8
  • EAN-5
  • EAN-2
  • UPC (A)
  • ITF-14
  • ITF
  • MSI10
  • MSI11
  • MSI1010
  • MSI1110
  • Pharmacode

Commands

dbr.barcode - Show the barcode

Syntax

select 'dbr.barcode' barcode | JSBarcode_object[, tag]

Where:

barcode
Any of the supported barcodes
JSBarcode_object
See JsBarcode
tag
Decide the HTML tag where the barcode will be enclosed into (svg, canvas, img). The default is img.

Usage

The parameter for the dbr.barcode-command can be either the barcode type, or one can define all the options available in JSBarcode directly in the parameter. See JsBarcode-website for available options.

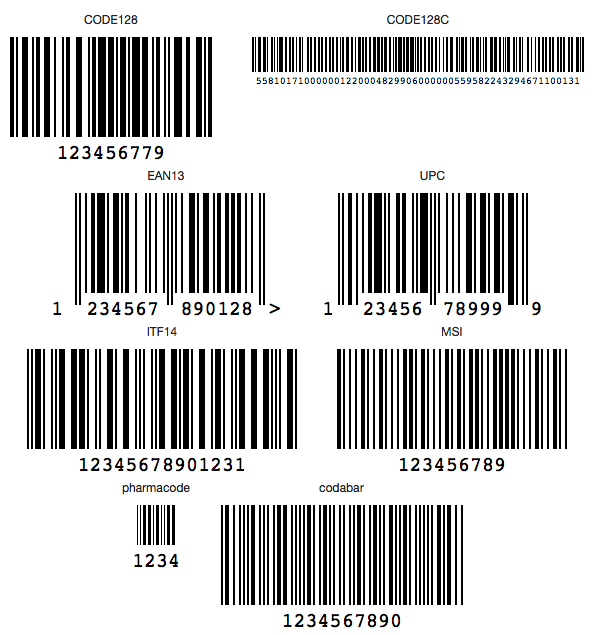

select 'dbr.keepwithnext';
select 'dbr.subtitle', 'CODE128';
select 'dbr.barcode', 'CODE128';

select '123456779';


select 'dbr.subtitle', 'CODE128C';
select 'dbr.barcode','{format: "CODE128C", width:1, height:35, fontSize:10}';
select '558101710000001220004829906000000559582243294671100131';


select 'dbr.keepwithnext', 'reset';


select 'dbr.keepwithnext';
select 'dbr.subtitle', 'EAN13';
select 'dbr.barcode','{format: "EAN13", lastChar: ">"}';
select '1234567890128';

select 'dbr.subtitle', 'UPC';
select 'dbr.barcode','UPC';
select '123456789999';


select 'dbr.keepwithnext', 'reset';


select 'dbr.keepwithnext';
select 'dbr.subtitle', 'ITF14';
select 'dbr.barcode','ITF14';
select '12345678901231';

select 'dbr.subtitle', 'MSI';
select 'dbr.barcode','MSI';
select '123456789';


select 'dbr.keepwithnext', 'reset';


select 'dbr.keepwithnext';
select 'dbr.subtitle', 'pharmacode';
select 'dbr.barcode','{format: "pharmacode", width:1, height:40, displayValue: true}', 'svg';

select '1234';

select 'dbr.subtitle', 'codabar';
select 'dbr.barcode','codabar';
select '1234567890';
