Barcode Extension

Commands

dbr.barcode - Displays a barcode

Syntax

select 'dbr.barcode', type | options [, tag];

Syntax Tips

• type
  Any of the supported barcode types (e.g., 'CODE128', 'EAN13').

• options
  A JSON object containing configuration options supported by JsBarcode.

• tag
  The HTML tag used to render the barcode (svg, canvas, or img). Defaults to img.

Usage

The dbr.barcode command accepts either a barcode type string or a JSON object containing configuration options supported by JSBarcode. For a complete list of available settings, refer to the JsBarcode website.

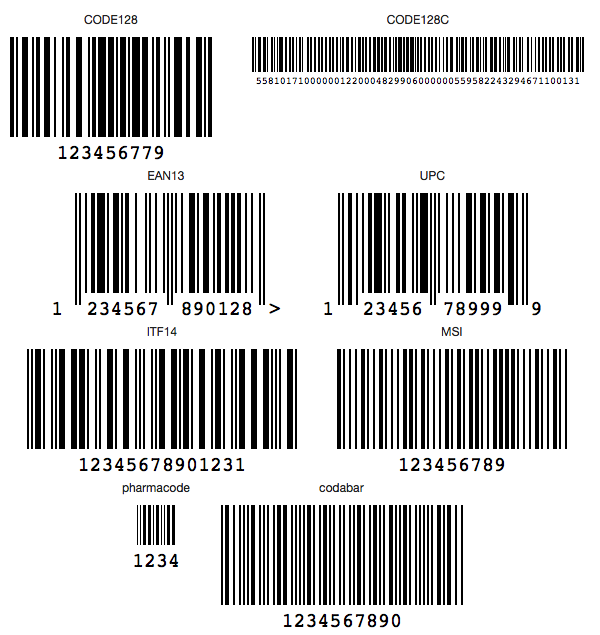

select 'dbr.keepwithnext';
select 'dbr.subtitle', 'CODE128';
select 'dbr.barcode', 'CODE128';

select '123456779';

select 'dbr.subtitle', 'CODE128C';
select 'dbr.barcode', '{format: "CODE128C", width:1, height:35, fontSize:10}';
select '558101710000001220004829906000000559582243294671100131';

select 'dbr.keepwithnext', 'reset';

select 'dbr.keepwithnext';
select 'dbr.subtitle', 'EAN13';
select 'dbr.barcode', '{format: "EAN13", lastChar: ">"}';
select '1234567890128';

select 'dbr.subtitle', 'UPC';
select 'dbr.barcode', 'UPC';
select '123456789999';

select 'dbr.keepwithnext', 'reset';

select 'dbr.keepwithnext';
select 'dbr.subtitle', 'ITF14';
select 'dbr.barcode', 'ITF14';
select '12345678901231';

select 'dbr.subtitle', 'MSI';
select 'dbr.barcode', 'MSI';
select '123456789';

select 'dbr.keepwithnext', 'reset';

select 'dbr.keepwithnext';
select 'dbr.subtitle', 'pharmacode';
select 'dbr.barcode', '{format: "pharmacode", width:1, height:40, displayValue: true}', 'svg';

select '1234';

select 'dbr.subtitle', 'codabar';
select 'dbr.barcode', 'codabar';
select '1234567890';
